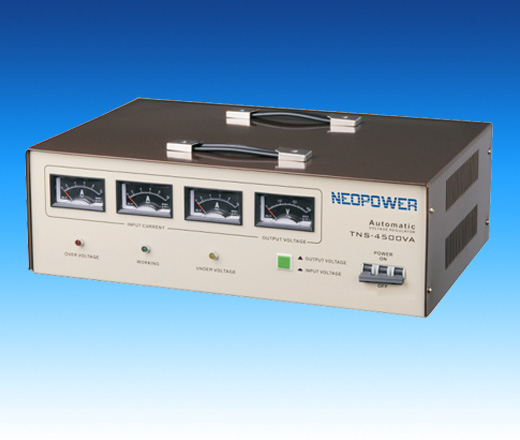

General (Three Phase Voltage Stabilizer TNS Series)
Neopower three phase voltage Stabilizer TNS Series is one kind of our competitive products; consist of contact auto voltage regulator, servo motor, automatic control circuit and etc. When the voltage fluctuates or the load varies, automatic sampling control circuit will send signal to drive the servo motor which can adjust the position of carbon brush of auto voltage regulator, then the output voltage will be adjusted to rated value and get a steady state.
This three phase voltage Stabilizer TNS Series is general type, which has the function of connecting via the commercial power. Compared with other voltage stabilizers, it has the advantage of great variety, complete specification, nice appearance and obvious features of high efficiency, no wave distortion, reliable performance, working continually for long time. Moreover, Neopower three phase voltage Stabilizer TNS Series is provided with short time delay and over voltage protection, the long time delay and under voltage protection also can be set according to user requirement. This three phase voltage Stabilizer TNS Series is an ideal stabilized voltage supply, widely used in any locations requiring electricity and ensures your power device can run normally.
Performance (Three Phase Voltage Stabilizer TNS Series)
|
Single phase input voltage |
160v-250v |
|
|
Single phase output voltage |
0.5KAV-3KAV 220Vand 110v 5KAV-3KAV 220V |
|
|
Three phase output voltage |
Phase voltage 160V-250V Wire voltage 277V-430V |
|
|
|
Three-phase output voltage |
Phase voltage 220V Wire voltage 380V |
|
|
|
Accuracy of voltage stabilization |
220V±3% 110V±6% |
|
|
Frequency |
50/60HZ |
|
|
Adjustable time |
<1s (when input voltage has a change of 10%) |
|
|
Ambient temperature |
-5℃--+40℃ |
|
|
Waveform distortion |
No additional waveform distortion |
|
|
Load power factor |
0.8 |
|
|
Dielectric strength |
1500V/1min |
|
|
insulation resistance |
≥2MΩ |
|
Model and spec (Three Phase Voltage Stabilizer TNS Series)
|
Specification(KVA) |
Product size D×W×H(cm) |
Package size D×W×H(cm) |
Weight
(kg) |
Qty |
|
Three phase
Four wire |
SVC-1.5 |
40×36×17 |
52×48×28 |
18 |
1 |
|
SVC-3 |
42×38×19 |
54×50×31 |
23 |
1 |
|
SVC-4.5 |
42×38×19 |
54×50×31 |
27 |
1 |
|
SVC-6 |
37×28×68 |
48×40×78 |
39 |
1 |
|
SVC-9 |
35×33×78 |
48×45×90 |
48 |
1 |
|
SVC-15 |
43×38×73 |
55×51×90 |
85 |
1 |
|
SVC-20 |
43×51×91 |
64×55×106 |
124 |
1 |
|
SVC-30 |
43×51×91 |
64×55×106 |
131 |
1 |
|
SVC-45 |
65×43×95 |
78×55×110 |
197 |
1 |
|
SVC-60 |
77×55×100 |
90×67×115 |
260 |
1 |
|
SVC-80 |
77×55×100 |
90×67×115 |
290 |
1 |
|
SVC-100 |
77×55×100 |
90×67×115 |
350 |
1 | |
