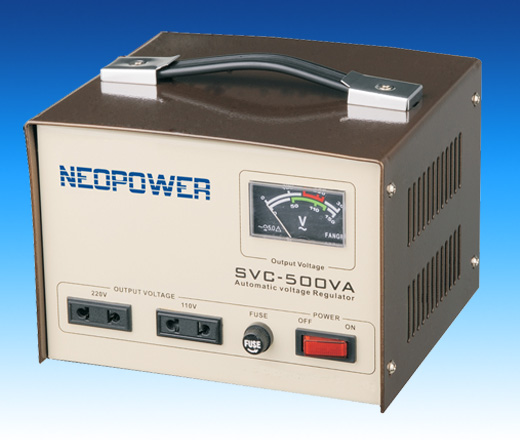

Single Phase Voltage Stabilizer SVC Series
Single Phase Voltage Stabilizer SVC Series
Share |

General (Single Phase Voltage Stabilizer SVC Series)
Neopower Single phase voltage Stabilizer (SVC Series) is one kind of our competitive products; consist of contact auto voltage regulator, servo motor, automatic control circuit and etc. When the voltage fluctuates or the load varies, automatic sampling control circuit will send signal to drive  the servo motor which can adjust the position of carbon brush of auto voltage regulator, then the output voltage will be adjusted to rated value and get a steady state.

This Single phase voltage Stabilizer (SVC Series) is general type, which has the function of connecting via the commercial power. Compared with other voltage stabilizers, it has the advantage of great variety, complete specification, nice appearance and obvious features of high efficiency, no wave distortion, reliable performance, working continually for long time. Moreover, Neopower Single phase voltage Stabilizer (SVC Series) is provided with short time delay and over voltage protection, the long time delay and under voltage protection also can be set according to user requirement. This product is an ideal stabilized voltage supply, widely used in any locations requiring electricity and ensures your power device can run normally.

Performance (Single Phase Voltage Stabilizer SVC Series)

Single phase input voltage

160v-250v

Single phase output voltage

0.5KAV-3KAV 220Vand 110v 5KAV-3KAV 220V

Three phase output voltage

Phase voltage 160V-250V Wire voltage 277V-430V

Three-phase output voltage

Phase voltage 220V Wire voltage 380V

Accuracy of voltage stabilization

220V±3% 110V±6%

Frequency

50/60HZ

Adjustable time

<1s (when input voltage has a change of 10%)

Ambient temperature

-5℃--+40℃

Waveform distortion

No additional waveform distortion

Load power factor

0.8

Dielectric strength

1500V/1min

insulation resistance

≥2MΩ

Model and spec (Single Phase Voltage Stabilizer SVC Series)

Specification(KVA)

Product size D×W×H(cm)

Product size D×W×H(cm)

Weight
(kg)

Qty

Single phase two wire(desk type)

 SVC-0.5

17×19×13

44×25×35

5.0

4

 SVC-1

20×22×16

50×28×40

7.0

4

 SVC-1.5

20×22×16

50×28×40

8.0

4

 SVC-2

26×24×19

34×32×50

14

2

 SVC-3

29×22×24

62×38×34

16

2

 SVC-5

46×24×19

54×32×27

27

1

 SVC-8

57×27×24

71×40×35

40

1

 SVC-10

57×27×24

70×40×35

41

1

Three phase

Four wire

 SVC-1.5

40×36×17

52×48×28

18

1

 SVC-3

42×38×19

54×50×31

23

1

 SVC-4.5

42×38×19

54×50×31

27

1

 SVC-6

37×28×68

48×40×78

39

1

 SVC-9

35×33×78

48×45×90

48

1

 SVC-15

43×38×73

55×51×90

85

1

Single phase two wire(desk type)

SVC-5

29×24×40

31×29×48

28.5

1

SVC-8

29×24×42

40×35×52

39

1

SVC-10

29×24×42

40×35×52

40

1

SVC-15

40×33×65

48×45×90

75

1

SVC-20

58×35×68

68×48×90

110

1

SVC-30

53×43×102

64×53×112

165

1

SVC-45

79×43×129

90×65×140

200

1

SVC-60

79×43×129

90×65×140

250

1

Three phase

Four wire

SVC-20

43×51×91

64×55×106

124

1

SVC-30

43×51×91

64×55×106

131

1

SVC-45

65×43×95

78×55×110

197

1

SVC-60

77×55×100

90×67×115

260

1

SVC-80

77×55×100

90×67×115

290

1

SVC-100

77×55×100

90×67×115

350

1

Relative Products
Single Phase Voltage Stabilizer SVC Series
Single Phase Voltage Stabilizer SVC Series
Single phase voltage stabilizer DBW series
Single phase voltage stabilizer DBW series

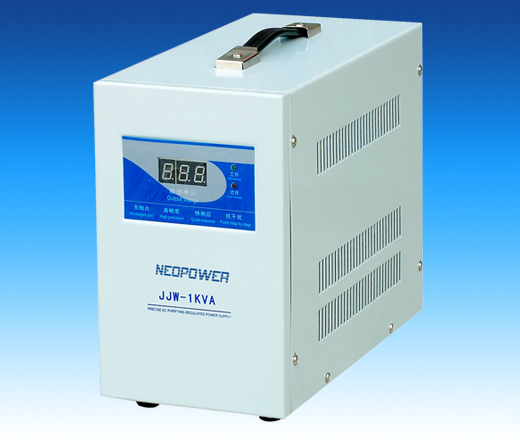

Single Phase Voltage Stabilizer JJW precision purified
Single Phase Voltage Stabilizer JJW precision purified

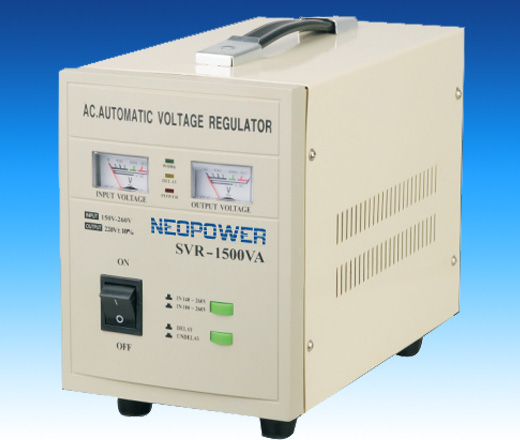

Single phase voltage stabilizer AVR series
Single phase voltage stabilizer AVR series

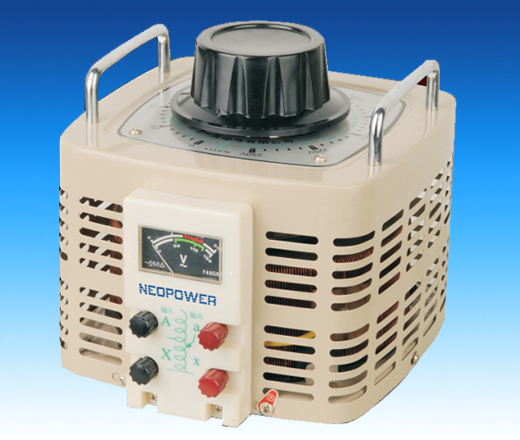

Single phase voltage regulator TDGC series
