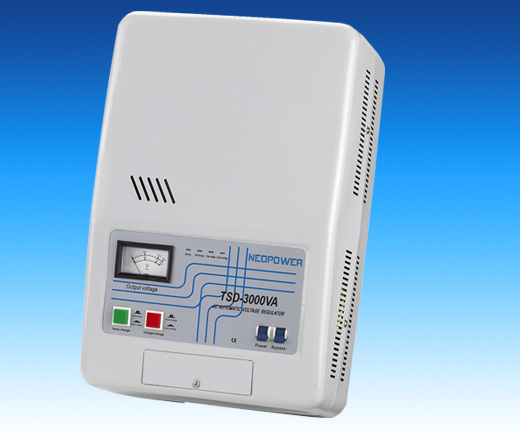

General (Hanging Type Servo Voltage Regulator)
Hanging Type Servo Voltage Regulator is developed on the base of SVC series high accuracy full-automatic AC voltage stabilizer. Compared with the original product, this type possesses higher quality and more functions, novel and luxurious appearance, hanging type installation for requiring small area. Hanging Type Servo Voltage Regulator forms the control system with linear integrated circuit and logical circuit, and drives the contact type voltage regulator to regulating automatically by controlling the servo motor.
It adopts high precision servo voltage stabilizing technology which usually is applied to industry for civilian industry product, to conquer the weakness of instantaneous power failure of traditional switching, and consequently realize high precision and uninterrupted stable voltage output. When the voltage from outer power network is not stable, it also can guarantee the top grade electrical appliances work safely and normally and prolong their service lives effectively, The hanging type voltage regulator TSD series is really the only ideal protection product for household and imported top grade electrical appliances (power supply of 110V).
Application (Hanging Type Servo Voltage Regulator)
The Hanging Type Servo Voltage Regulator is for office equipment, test equipment, medical equipment, industrial automation equipment, household electrical appliance, lighting system, communication system, etc.
Performance (Hanging Type Servo Voltage Regulator)
|
lnput voltage |
Single-phase 160V-250V |
|
Output voltage |
Single-phase 220Vand110V |
|
Voltage stabilizing precision |
220V±3%and 110V±6% |
|
frequency |
50Hz/60Hz |
|
Adjusting time |
<1s (when input voltage has a change of 10%) |
|
Efficiency |
>90% |
|
Over-voltage protection |
246V±4V |
|
Under-voltage protection |
184V±4V |
|
Ambient temperature |
-5℃--+40℃ |
|
Relative humidity |
≤90% |
|
Waveform distortion |
No additional waveform distortion |
|
|
|
|
Load power factor |
0.8 |
|
Dielectric strength |
1500V/min |
|
lnsulation resistance |
≥2MΩ |
|
Delay time |
Long 5min±2min,short 5s±2s |
Model and spec (Hanging Type Servo Voltage Regulator)
|
Spec(KVA) |
Product size D×W×H(cm) |
Package size D×W×H(cm) |
Weight(kg) |
Qty |
|
TSD-3 |
37×25×13 |
42×32×18 |
14 |
1 |
|
TSD-4 |
37×25×13 |
42×3218 |
15 |
1 |
|
TSD-5 |
43×30×14 |
49×36×19 |
22 |
1 |
|
TSD-6 |
43×30×14 |
49×36×19 |
23 |
1 |
|
TSD-7 |
43×30×14 |
49×36×21 |
25.5 |
1 |
|
TSD-8 |
48×32×19 |
52×38×25 |
32 |
1 |
|
TSD-10 |
48×32×19 |
52×28×35 |
37 |
1 | |
