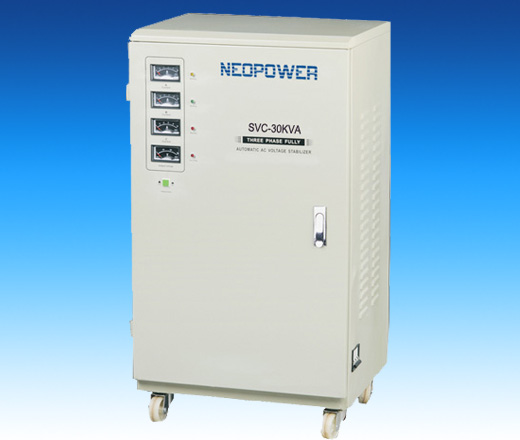

General (30KVA Whole House Voltage Stabilizer)
Neopower Whole House Voltage Stabilizer is one kind of our competitive products; consist of contact auto voltage regulator, servo motor, automatic control circuit and etc. When the voltage fluctuates or the load varies, automatic sampling control circuit will send signal to drive the servo motor which can adjust the position of carbon brush of auto voltage regulator, then the output voltage will be adjusted to rated value and get a steady state.
This Whole House Voltage Stabilizer is general type, it has the advantage of great variety, complete specification, nice appearance and obvious features of high efficiency, no wave distortion, reliable performance, working continually for long time. Moreover, NeopowerWhole House Voltage Stabilizer is provided with short time delay and over voltage protection, the long time delay and under voltage protection also can be set according to user requirement. This product is an ideal stabilized voltage supply, widely used in any locations requiring electricity and ensures your power device can run normally.
Performance (30KVA Whole House Voltage Stabilizer)
|
Single phase input voltage |
140v-260v |
Frequency |
50/60HZ |
|
Single phase output voltage |
0.5KVA-3KVA 220Vand 110v 5KVA-3KVA 220V |
Adjustable time |
<1s (when input voltage has a change of 10%) |
|
Three phase output voltage |
Phase voltage 140V-260V Wire voltage 242V-450V |
Ambient temperature |
-5℃--+40℃ |
|
Waveform distortion |
No additional waveform distortion |
|
Three-phase output voltage |
Phase voltage 220V Wire voltage 380V |
Load power factor |
0.8 |
|
Dielectric strength |
1500V/1min |
|
Accuracy of voltage stabilization |
220V±3% 110V±6% |
insulation resistance |
≥2MΩ |
Model and spec (30KVA Whole House Voltage Stabilizer)
|
Specification(KVA) |
Product size D×W×H(cm) |
Product size D×W×H(cm) |
Weight
(kg) |
Qty |
|
Single phase two wire(desk type) |

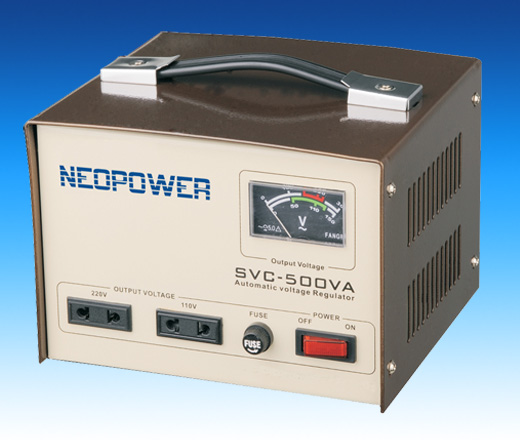

SVC-0.5 |
17×19×13 |
44×25×35 |
5.0 |
4 |
|
SVC-1 |
20×22×16 |
50×28×40 |
7.0 |
4 |
|
SVC-1.5 |
20×22×16 |
50×28×40 |
8.0 |
4 |
|
SVC-2 |
26×24×19 |
34×32×50 |
14 |
2 |
|
SVC-3 |
29×22×24 |
62×38×34 |
16 |
2 |
|
SVC-5 |
46×24×19 |
54×32×27 |
27 |
1 |
|
SVC-8 |
57×27×24 |
71×40×35 |
40 |
1 |
|
SVC-10 |
57×27×24 |
70×40×35 |
41 |
1 |
|
Three phase
Four wire |
SVC-1.5 |
40×36×17 |
52×48×28 |
18 |
1 |
|
SVC-3 |
42×38×19 |
54×50×31 |
23 |
1 |
|
SVC-4.5 |
42×38×19 |
54×50×31 |
27 |
1 |
|
SVC-6 |
37×28×68 |
48×40×78 |
39 |
1 |
|
SVC-9 |
35×33×78 |
48×45×90 |
48 |
1 |
|
SVC-15 |
43×38×73 |
55×51×90 |
85 |
1 |
CUSTOMIZED REQUIREMENT IS ACCEPTED!!! |
